LED Driver- Constant Current Series
Mounted power supply SP Series
MOQ ： piece
Lead Time ： Days
Seller Support : Trade Authenticity Guaranteed & Accepting
Payment : L/C,T/T
Departure Port : Shanghai
Product details
Supply Ability
- Warranty(Year)：1 Year
Product Specifications
Product Description
Product features:
● AC input selectable by switch
● Protections: Overload /Short circuit/Over voltage
● Forced air cooling by built-in DC fan
● 100% full load burn-in test
● 1`3 years warranty
Specifications:
AC input voltage range 88~132VAC/180~264VAC
selected by switchand
255~370VDC
Input frequency 47~63HZ
Input current
Inrush current <
Output adjustment range ±10% rated output voltage
Overload protection 120~150% rated output power
and Hiccup model , no damage , automatic recover after removing over load condition
Over voltage protection 115~145% rated voltage and Shut off O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 1.5KVAC,
I/P-FG:1.5KVAC,
O/P-FG:0.5KVAC
Hold up time >20ms at full load
Operating temperature -20 ~+
Working humidity 20 ~90% RH non-condensing
Storage temperature& humidity -20~+
Safely standards design refer to EN60950
EMC standards EN6
EN6
EN55022 Class B
MTBF 350 Khrs, Mil-HDBK
Weight

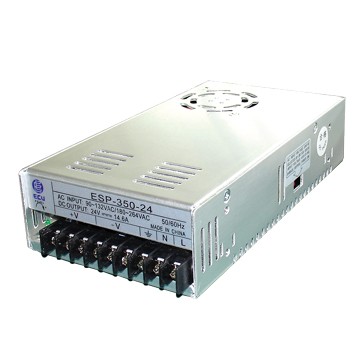

P/N Output R&N Effi.（type） Load Regulation ESP-350-24 24V，0~ 100mV p-p >84% 2%
