LED Driver- Constant Current Series
Mounted power supply SP Series
MOQ ： piece
Lead Time ： Days
Seller Support : Trade Authenticity Guaranteed & Accepting
Payment : L/C,T/T
Departure Port : Shanghai
Product details
Supply Ability
- Warranty(Year)：1 Year
Product Specifications
Product Description
Product feature：
● AC input selectable by switch
● Protections: Overload /Short circuit/Over voltage
● Forced air cooling by built-in DC fan
● 100% full load burn-in test
● 1`3 years warranty
Specifications:
AC input voltage 88~ 132VAC/ 180~264VAC selected
by switchand 255~370VDC
Input frequency 47~63Hz
Input current
Hold up time >20ms at full load
Overload protection 120~150% rated output power
and Shut off O/P voltage, automatic recover
Over voltage protection 120~150% rated output power
and Hiccup model , no damage , automatic recover after removing over load condition
Operating temperature -20 ~+
Storage temp & humidity -20~+
Operating humidity 20 ~90% RH non-condensing
Safety standard design refer to EN60950
EMC standards EN6
EN6
Withstand voltage I/P-O/P: 1.5KVAC,I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
MTBF 350 Khrs, Mil-HDBK
Weight

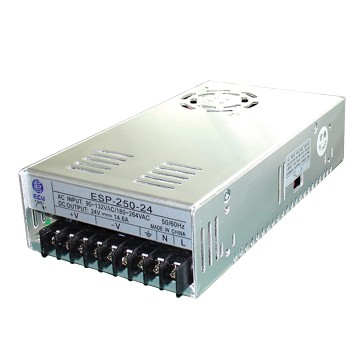

P/N Output Tol. R&N Effi.（type） Load Regulation Line Regulation ESP-250-24 24V,0~ ±3% 100mV p-p >84% ±2% ±1% ESP-250-48 48V,0~ ±3% 300mV p-p >86% ±2% ±1%
